Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

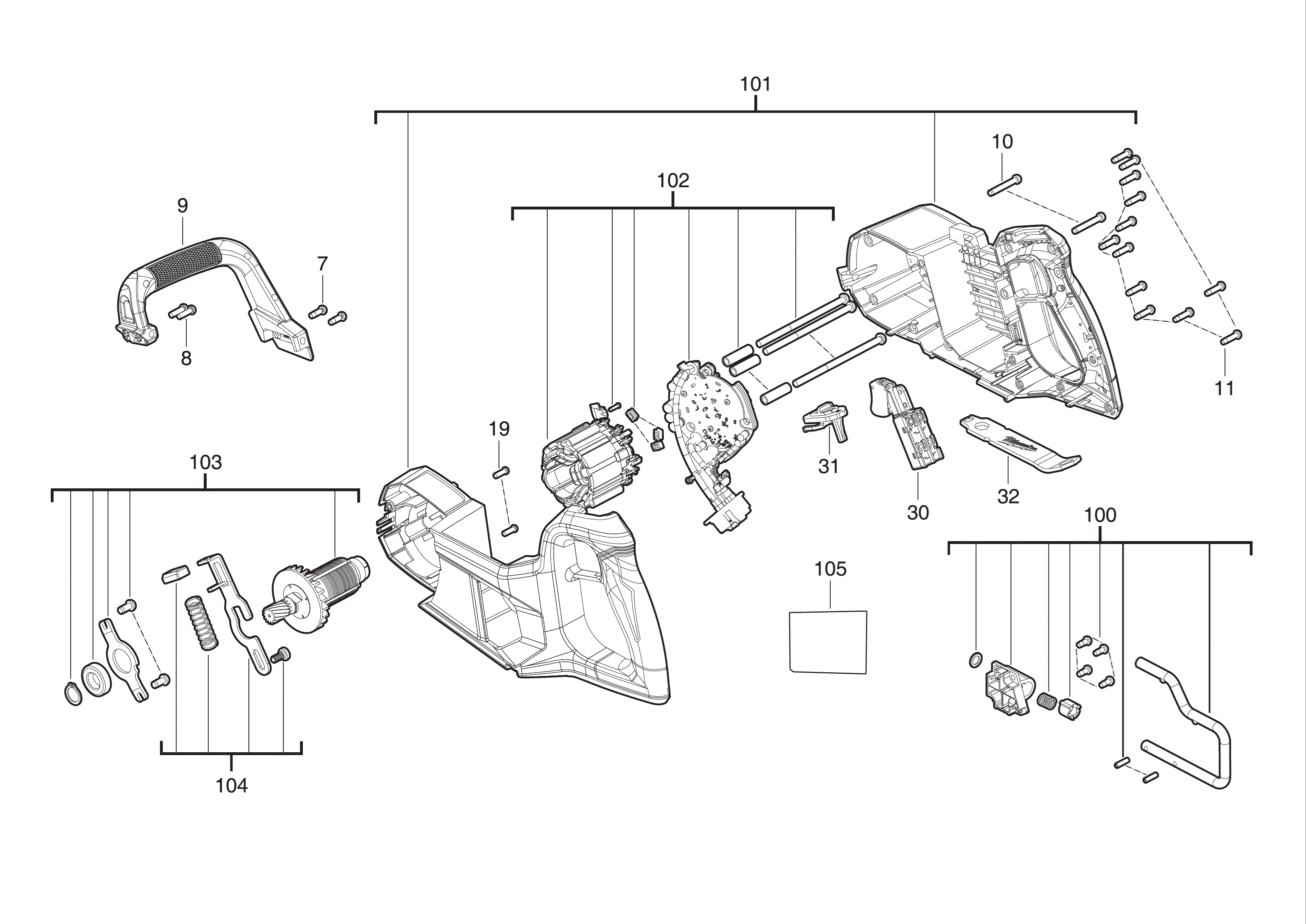

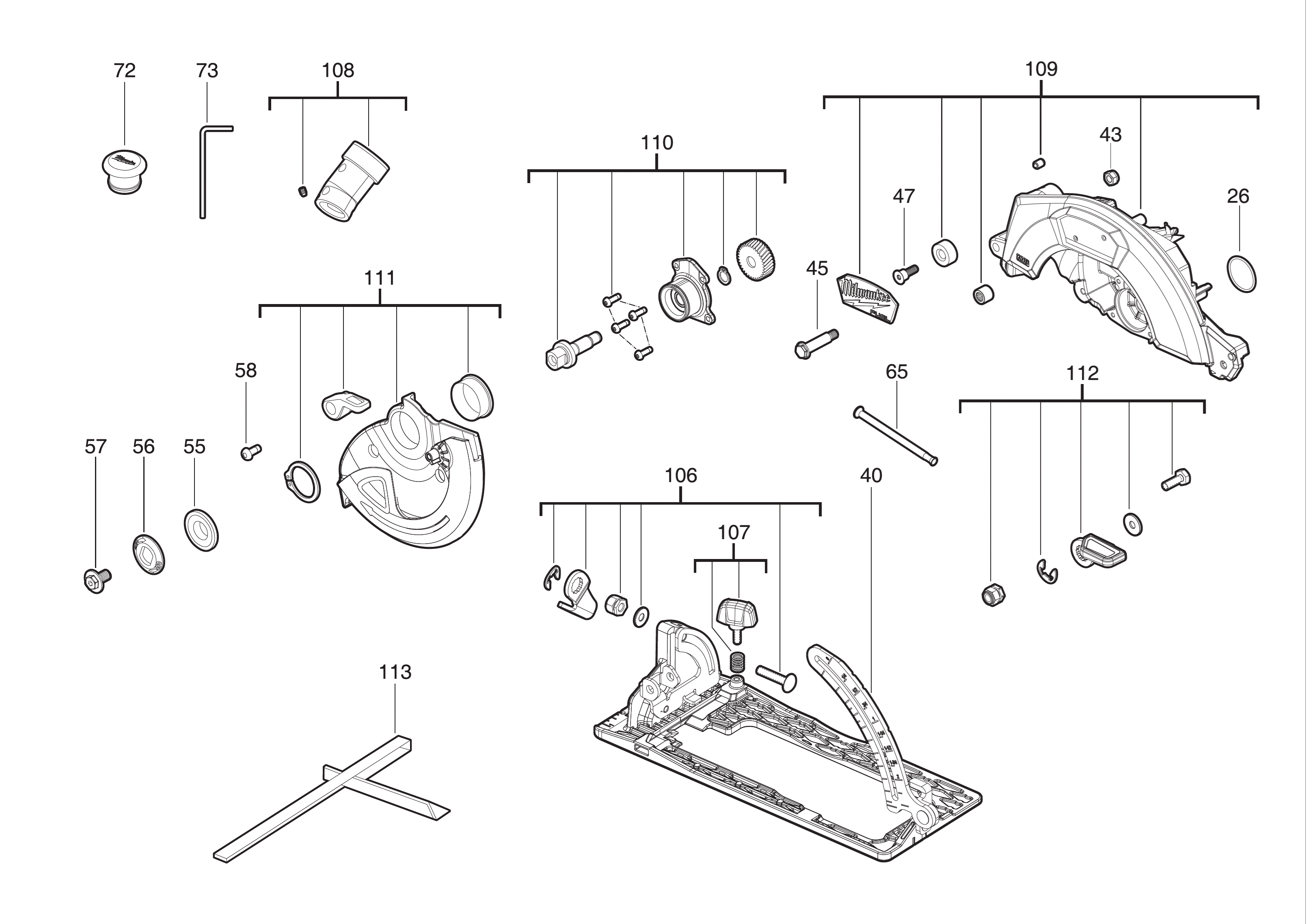

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0007 |
SCREW (2)
|
4931454800 |
3.00
|
|
|
0008 |
SCREW (2)
|
4931454363 |
2.50
|
|
|
0009 |
HANDLE (1)
|
4931507861 |
5.00
|
|
|
0010 |
SCREW (2)
|
4931507862 |
1.00
|
|
|
0011 |
SCREW (12)
|
4931506283 |
1.00
|
|
|
0019 |
SCREW (2)
|
4931465883 |
2.50
|
|
|
0026 |
RUBBER RING (1)
|
4931507084 |
1.00
|
|
|
0030 |
SWITCH KIT (1)
|
4931507086 |
21.00
|
|
|
0031 |
SLIDER (1)
|
4931507863 |
3.00
|
|
|
0032 |
WRENCH (1)
|
4931507082 |
4.00
|
|
|
0040 |
SHOE (1)
|
4931507864 |
74.00
|
|
|
0043 |
NUT (1)
|
4931506287 |
1.00
|
|
|
0045 |
BOLT (1)
|
4931506288 |
2.50
|
|
|
0047 |
SCREW (1)
|
4931506290 |
1.00
|
|
|
0055 |
FLANGE (1)
|
4931507865 |
6.00
|
|
|
0056 |
FLANGE WASHER (1)
|
4931507866 |
4.00
|
|
|
0057 |
SCREW (1)
|
4931507867 |
1.00
|
|
|
0058 |
SCREW TORX SCREW (1)
|
06825314 |
2.50
|
|
|
0065 |
SPRING (1)
|
4931507589 |
1.00
|
|
|
0072 |
PLUG (1)
|
4931507868 |
3.00
|
|
|
0073 |
WRENCH (1)
|
4931507869 |
3.00
|
|
|
0100 |
HOOK (1)
|
4931507870 |
14.00
|
|
|
0101 |
HANDLE (1)
|
4931507871 |
38.00
|
|
|
0102 |
ELECTRONIC (1)
|
4931507872 |
192.00
|
|
|
0103 |
ROTOR (1)
|
4931507873 |
81.00
|
|
|
0104 |
INTERLOCK PLATE (1)
|
4931507874 |
9.00
|
|
|
0105 |
RATING PLATE (1)
|
4931507875 |
1.00
|
|
|
0106 |
BEVEL GEAR (1)
|
4931507876 |
8.50
|
|
|
0107 |
KNOB (1)
|
4931507877 |
11.00
|
|
|
0108 |
ADAPTOR (1)
|
4931507878 |
6.50
|
|
|
0109 |
GUARD CAP SET (1)
|
4931507879 |
59.00
|
|
|
0110 |
SHAFT (1)
|
4931507880 |
31.00
|
|
|
0111 |
GUARD (1)
|
4931507881 |
29.00
|
|
|
0112 |
BRACKET (1)
|
4931507882 |
10.00
|
|
|
0113 |
PARALLEL GUIDE (1)
|
43300100 |
6.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
