Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

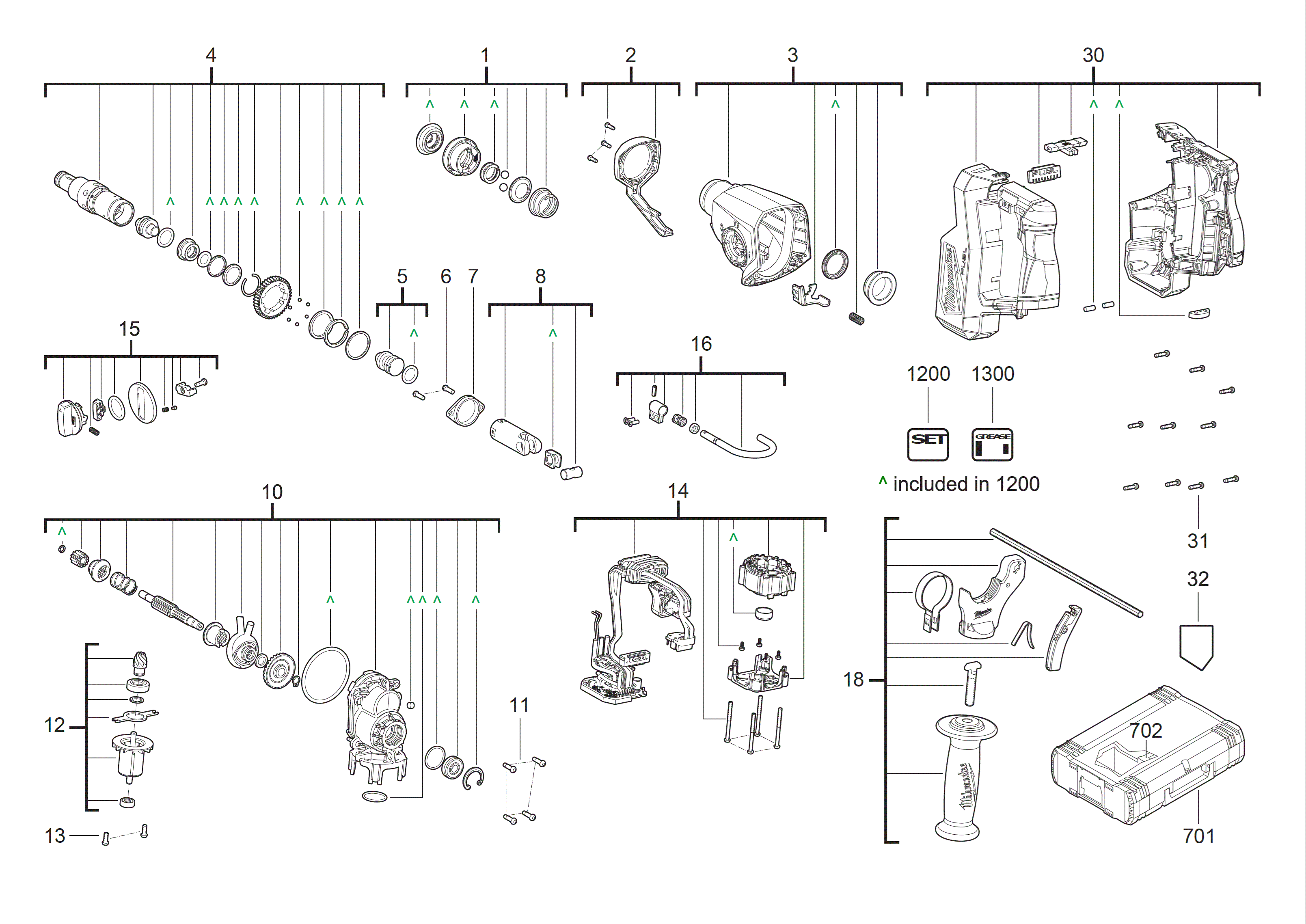

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
COLLAR (1)
|
4931506990 |
16.00
|
|
|
0002 |
HOUSING CAP (1)
|
4931506991 |
22.00
|
|
|
0003 |
GEAR BOX HOUSING (1)
|
4931506992 |
30.00
|
|
|
0004 |
SPINDLE KIT (1)
|
4931506993 |
70.00
|
|
|
0005 |
STRIKER (1)
|
4931506994 |
19.00
|
|
|
0006 |
SCREW (2)
|
4931465883 |
2.50
|
|
|
0007 |
BUSHING (1)
|
4931506995 |
2.50
|
|
|
0008 |
PISTON (1)
|
4931506996 |
24.00
|
|
|
0010 |
GEAR BOX KIT (1)
|
4931506997 |
77.00
|
|
|
0011 |
SCREW (4)
|
4931496890 |
1.50
|
|
|
0012 |
ROTOR (1)
|
4931506998 |
46.50
|
|
|
0013 |
SCREW (2)
|
4931435312 |
2.50
|
|
|
0014 |
ELECTRONIC (1)
|
4931506999 |
162.00
|
|
|
0015 |
TURNING KNOB (1)
|
4931507000 |
14.00
|
|
|
0016 |
HOOK (1)
|
4931507001 |
20.00
|
|
|
0018 |
HANDLE SET (1)
|
4931507002 |
26.00
|
|
|
0030 |
HOUSING (1)
|
4931507003 |
34.00
|
|
|
0031 |
SCREW (10)
|
660570005 |
3.00
|
|
|
0032 |
RATING PLATE (1)
|
4931507004 |
1.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
|
0702 |
INSERT (1)
|
4931507005 |
16.50
|
|
|
1200 |
MAINTENANCE SET (1)
|
4931507006 |
42.00
|
|
|
1300 |
GEAR GREASE (1)
|
4931443288 |
8.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
