Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

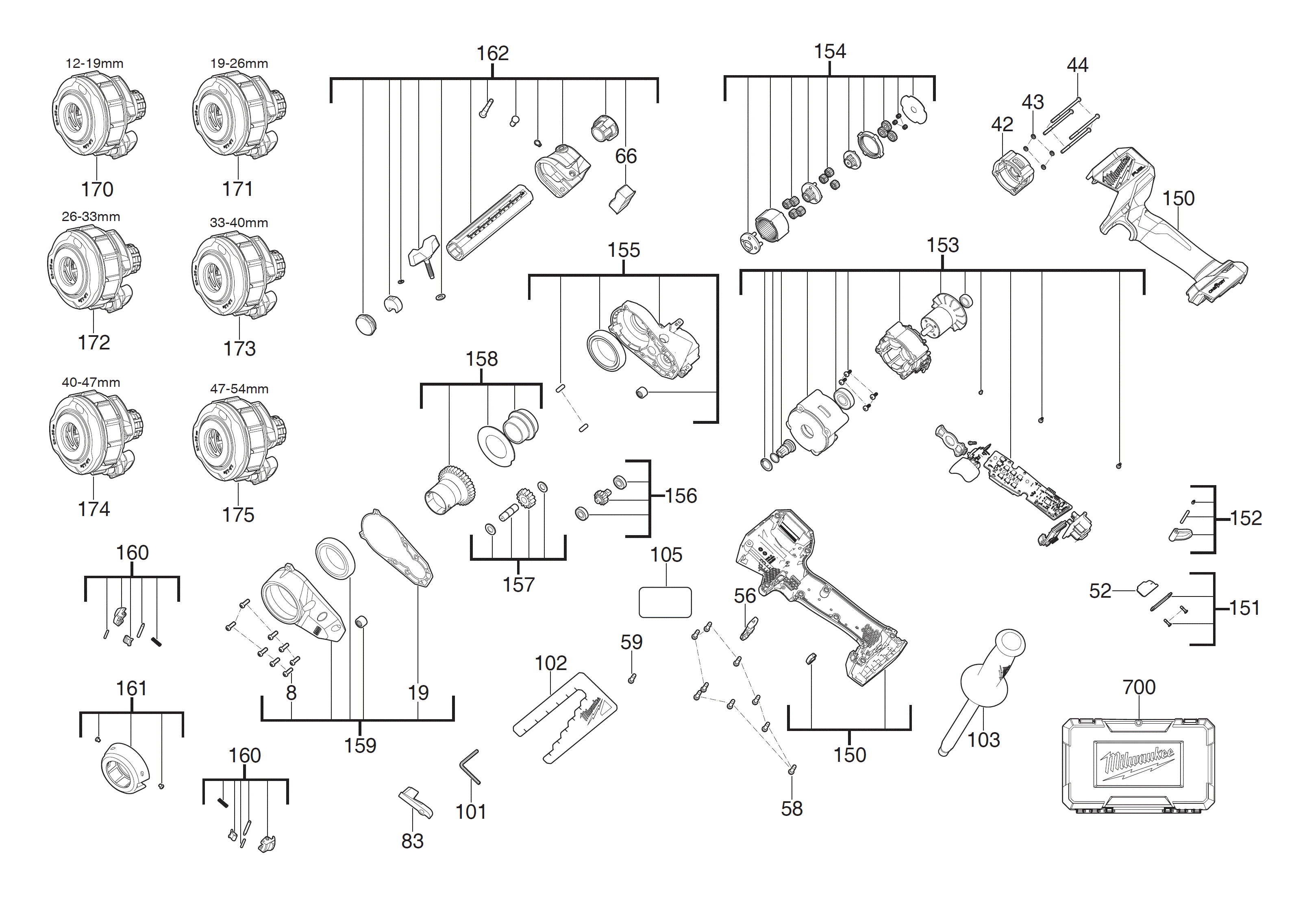

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0008 |
SCREW (8)
|
4931472688 |
1.00
|
|
|
0019 |
SEAL (1)
|
4931508895 |
6.00
|
|
|
0042 |
MOTOR COVER (1)
|
4931508896 |
14.00
|
|
|
0043 |
SPRING WASHER (4)
|
670028003 |
1.00
|
|
|
0044 |
SCREW (4)
|
4931479062 |
2.50
|
|
|
0052 |
COIN CELL PCBA (1)
|
4931508897 |
40.00
|
|
|
0056 |
BUTTON (1)
|
4931508898 |
3.00
|
|
|
0058 |
SCREW (10)
|
4931473361 |
2.50
|
|
|
0059 |
SCREW (1)
|
660414013 |
2.50
|
|
|
0066 |
DAMPER (1)
|
4931508899 |
4.00
|
|
|
0083 |
Replacement Blade M18FCST (1)
|
4932499283 |
189.00
|
|
|
0101 |
WRENCH (1)
|
4931508900 |
3.00
|
|
|
0102 |
CURVE GUIDE (1)
|
4931508901 |
14.00
|
|
|
0103 |
HANDLE (1)
|
4931508902 |
40.00
|
|
|
0105 |
RATING PLATE (1)
|
4931510557 |
1.00
|
|
|
0150 |
HANDLE (1)
|
4931508903 |
53.00
|
|
|
0151 |
COVER (1)
|
4931508904 |
10.00
|
|
|
0152 |
LATCH (1)
|
4931508905 |
25.00
|
|
|
0153 |
ELECTRONIC (1)
|
4931508906 |
201.00
|
|
|
0154 |
GEAR UNIT (1)
|
4931508907 |
41.00
|
|
|
0155 |
GEAR CASE (1)
|
4931508908 |
98.00
|
|
|
0156 |
PINION (1)
|
4931508909 |
62.00
|
|
|
0157 |
GEAR KIT (1)
|
4931508910 |
36.00
|
|
|
0158 |
GEAR KIT (1)
|
4931508911 |
66.00
|
|
|
0159 |
GEAR UNIT (1)
|
4931508912 |
84.00
|
|
|
0160 |
LOCK (2)
|
4931508913 |
29.00
|
|
|
0161 |
COLLAR (1)
|
4931508914 |
16.00
|
|
|
0162 |
BRACKET (1)
|
4931508915 |
75.00
|
|
|
0700 |
CARRYING CASE (1)
|
4931508916 |
66.00
|
|
|
0170 |
Stripping Head 12-19mm (1)
Get to device
|
4932499277 |
349.00
|
|
|
0171 |
Stripping Head 19-26mm (1)
Get to device
|
4932499278 |
349.00
|
|
|
0172 |
Stripping Head 26-33mm (1)
Get to device
|
4932499279 |
359.00
|
|
|
0173 |
Stripping Head 33-40mm (1)
Get to device
|
4932499280 |
369.00
|
|
|
0174 |
Stripping Head 40-47mm (1)
Get to device
|
4932499281 |
369.00
|
|
|
0175 |
Stripping Head 47-54mm (1)
Get to device
|
4932499282 |
369.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
