Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

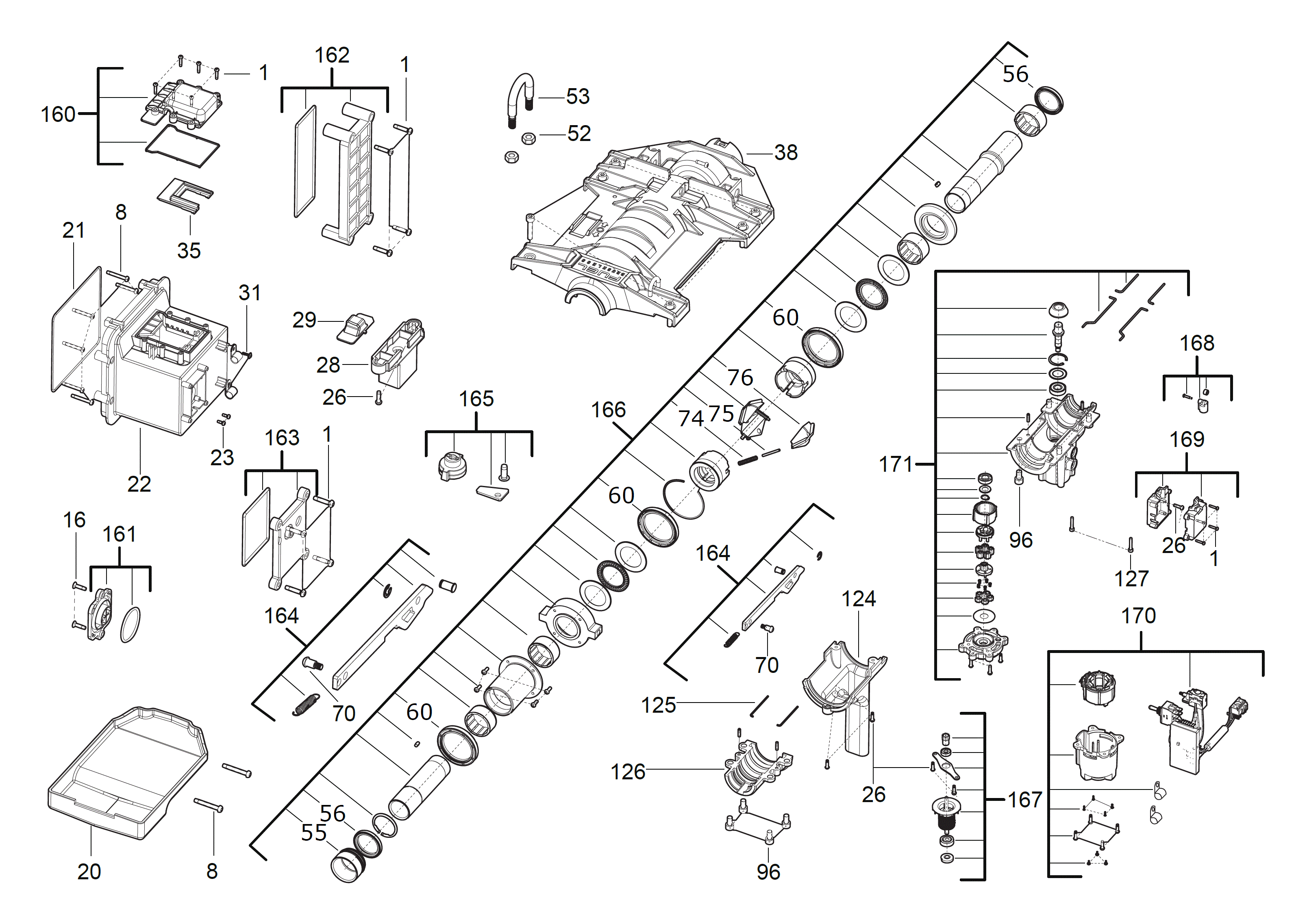

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (35)
|
660570005 |
2.50
|
|
|
0002 |
FRAME (1)
|
4931479019 |
27.50
|
|
|
0003 |
CAP (2)
|
4931479020 |
3.00
|
|
|
0008 |
SCREW (20)
|
4931435023 |
2.50
|
|
|
0016 |
SCREW (2)
|
4931479021 |
2.50
|
|
|
0020 |
COVER (1)
|
4931479022 |
4.50
|
|
|
0021 |
GASKET (1)
|
4931479023 |
4.00
|
|
|
0022 |
HOUSING (1)
|
4931479024 |
18.00
|
|
|
0023 |
SCREW (4)
|
4931431788 |
2.50
|
|
|
0026 |
SCREW (27)
|
4931435150 |
2.50
|
|
|
0027 |
HOOK (1)
|
4931479025 |
3.00
|
|
|
0028 |
SWITCH MOUNTING (1)
|
4931479026 |
3.00
|
|
|
0029 |
SLIDING SWITCH (1)
|
4931465477 |
3.00
|
|
|
0031 |
SCREW (2)
|
660960001 |
1.00
|
|
|
0035 |
SUPPORT (1)
|
4931479027 |
2.50
|
|
|
0038 |
HOUSING (1)
|
4931479028 |
136.50
|
|
|
0045 |
BUSH (1)
|
4931496620 |
8.00
|
|
|
0046 |
TENSION LEVER (1)
|
4931496462 |
35.00
|
|
|
0047 |
SPACER (1)
|
4931496463 |
2.50
|
|
|
0048 |
WASHER (1)
|
4931496464 |
3.00
|
|
|
0050 |
PRESSURE SPRING (1)
|
4931496465 |
3.00
|
|
|
0051 |
SHAFT (1)
|
4931496466 |
7.00
|
|
|
0052 |
NUT (4)
|
4931479029 |
2.50
|
|
|
0053 |
HOLDING BRACKET (2)
|
4931479030 |
6.00
|
|
|
0054 |
COVER (1)
|
4931479031 |
6.50
|
|
|
0070 |
SCREW (2)
|
4931479032 |
1.00
|
|
|
0074 |
SPRING (3)
|
4931480402 |
2.50
|
|
|
0075 |
PIN (3)
|
4931480403 |
2.50
|
|
|
0076 |
COLLET (3)
|
4931480404 |
26.00
|
|
|
0096 |
SCREW (8)
|
Item discontinued
(4931435697) |
|
|
|
0114 |
LATCH BAR (2)
|
4931479033 |
12.00
|
|
|
0123 |
FRAME (1)
|
4931479034 |
28.50
|
|
|
0124 |
DEFLECTOR (1)
|
4931479035 |
9.00
|
|
|
0125 |
GASKET (2)
|
4931479036 |
2.50
|
|
|
0126 |
HOUSING (1)
|
4931479037 |
21.00
|
|
|
0127 |
SCREW (2)
|
4931461267 |
2.50
|
|
|
0150 |
HOUSING (1)
|
4931479038 |
87.50
|
|
|
0151 |
STRAP (1)
|
4931479039 |
20.00
|
|
|
0153 |
RATING PLATE (1)
|
4931479040 |
2.50
|
|
|
0154 |
FOOT (4)
|
4931479041 |
15.00
|
|
|
0155 |
WASHER (4)
|
4931479042 |
37.00
|
|
|
0156 |
COVER (1)
|
4931479043 |
44.50
|
|
|
0157 |
HOLDER (1)
|
4931479044 |
27.50
|
|
|
0158 |
LEVER (1)
|
4931479045 |
214.50
|
|
|
0159 |
HOOK (1)
|
4931479046 |
12.00
|
|
|
0160 |
TERMINAL STRIP (1)
|
4931479047 |
30.50
|
|
|
0161 |
COVER (1)
|
4931479048 |
22.50
|
|
|
0162 |
COVER (1)
|
4931479049 |
24.50
|
|
|
0163 |
COVER (1)
|
4931479050 |
23.50
|
|
|
0164 |
ROD (2)
|
4931479051 |
49.50
|
|
|
0165 |
RETAINER (1)
|
4931479052 |
49.50
|
|
|
0166 |
DRIVE (1)
|
4931479053 |
528.00
|
|
|
0167 |
ROTOR (1)
|
4931479054 |
39.00
|
|
|
0168 |
TRIGGER (1)
|
4931479055 |
33.00
|
|
|
0169 |
COVER (1)
|
4931479056 |
25.50
|
|
|
0170 |
ELECTRONIC (1)
|
4931479057 |
227.50
|
|
|
0171 |
GEAR BOX (1)
|
4931479058 |
163.50
|
|
|
0152 |
Medium Guide Hose for FCSSM (1)
|
4932478409 |
164.80
|
|
