Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|
Position |
Description (Qty) |
Part number |
Price (€) |
|
|

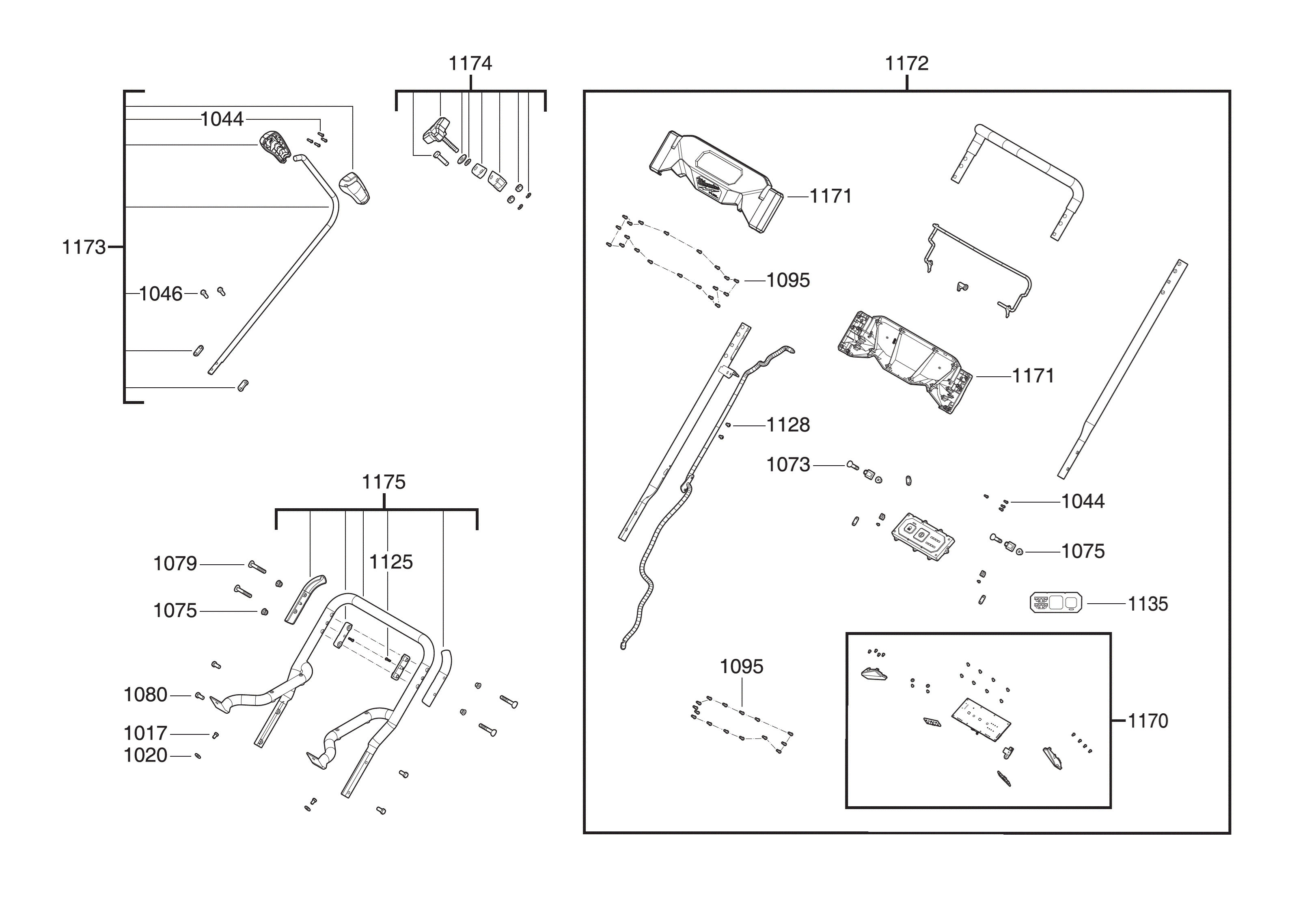

1017 |
SCREW (14)
|
4931508419 |
2.50
|
|
|
1020 |
WASHER (25)
|
4931508420 |
2.50
|
|
|
1044 |
SCREW (24)
|
660570005 |
3.00
|
|
|
1046 |
BOLT (2)
|
4931508421 |
2.50
|
|
|
1073 |
SCREW (2)
|
4931508422 |
3.00
|
|
|
1075 |
FLANGE NUT (6)
|
4931508423 |
3.00
|
|
|
1079 |
SCREW (4)
|
4931508424 |
3.00
|
|
|
1080 |
SCREW (4)
|
4931508425 |
3.00
|
|
|
1095 |
SCREW (49)
|
4931465326 |
3.00
|
|
|
1125 |
SCREW (2)
|
4931508426 |
2.50
|
|
|
1128 |
SCREW (2)
|
4931466677 |
1.50
|
|
|
1135 |
LABEL (1)
|
4931508427 |
5.00
|
|
|
1170 |
ELECTRONIC (1)
|
4931508428 |
87.00
|
|
|
1171 |
HOUSING (1)
|
4931508429 |
58.00
|
|
|
1172 |
HANDLE BAR (1)
|
4931508430 |
258.00
|
|
|
1173 |
ROD (1)
|
4931508431 |
83.00
|
|
|
1174 |
KNOB (1)
|
4931508432 |
60.00
|
|
|
1175 |
HANDLE (1)
|
4931508433 |
96.00
|
|
|

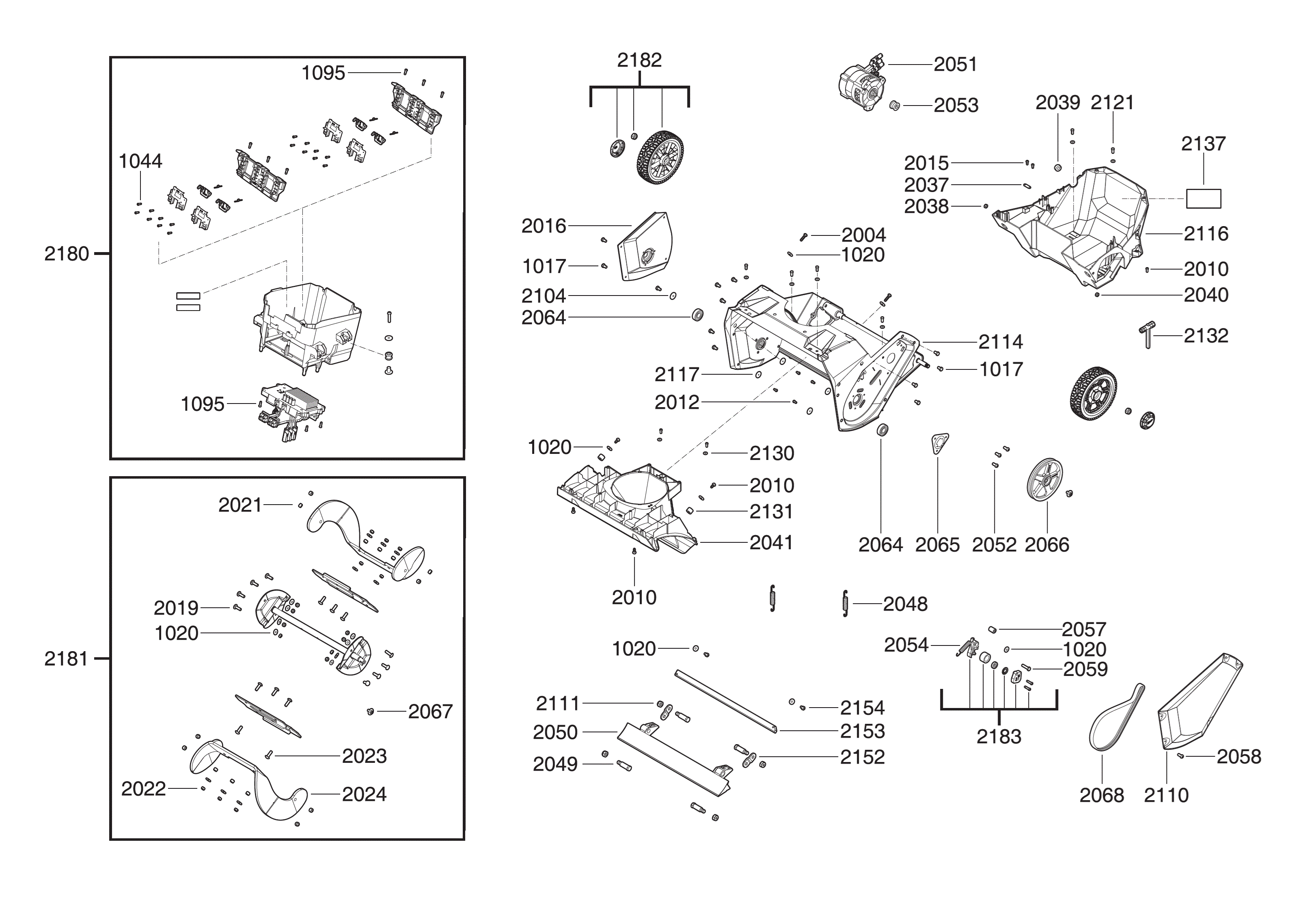

2004 |
SCREW (7)
|
661164001 |
3.00
|
|
|
2010 |
SCREW (13)
|
4931508434 |
2.50
|
|
|
2012 |
SCREW (10)
|
4931435015 |
3.00
|
|
|
2015 |
SCREW (18)
|
4931447515 |
1.50
|
|
|
2016 |
COVER (1)
|
4931508435 |
20.00
|
|
|
2019 |
SCREW (10)
|
4931508436 |
3.00
|
|
|
2021 |
BUSHING (14)
|
4931508437 |
2.50
|
|
|
2022 |
NUT (16)
|
4931508438 |
2.50
|
|
|
2023 |
SCREW (2)
|
4931508439 |
3.00
|
|
|
2024 |
PADDLE ASSEMBLY (2)
|
4931508440 |
69.00
|
|
|
2037 |
PLATE (3)
|
4931508441 |
2.50
|
|
|
2038 |
NUT (2)
|
4931508442 |
2.50
|
|
|
2039 |
GROMMET (1)
|
4931508443 |
3.00
|
|
|
2040 |
SCREW (4)
|
4931496891 |
1.50
|
|
|
2041 |
SIDE DISCHARGE CHUTE (1)
|
4931508444 |
28.00
|
|
|
2048 |
SPRING (2)
|
4931508445 |
4.00
|
|
|
2049 |
CROSS BRACKET (4)
|
4931508446 |
7.00
|
|
|
2050 |
SCRAPER SET (1)
|
4931508447 |
33.00
|
|
|
2051 |
MOTOR (1)
|
4931508448 |
196.50
|
|
|
2052 |
SCREW (3)
|
4931494114 |
1.50
|
|
|
2053 |
PULLEY (1)
|
4931508449 |
7.00
|
|
|
2054 |
SPRING (1)
|
4931508450 |
3.00
|
|
|
2057 |
BUSHING (1)
|
4931508451 |
4.00
|
|
|
2058 |
SCREW (5)
|
4931508452 |
3.00
|
|
|
2059 |
SCREW (1)
|
4931508453 |
2.50
|
|
|
2064 |
BALL BEARING (2)
|
4931508454 |
6.00
|
|
|
2065 |
COVER (1)
|
4931508455 |
6.00
|
|
|
2066 |
PULLEY (1)
|
4931508456 |
23.00
|
|
|
2067 |
SCREW (1)
|
4931508457 |
3.00
|
|
|
2068 |
BELT (1)
|
4931508458 |
15.00
|
|
|
2104 |
CLAMP (1)
|
4931508459 |
3.00
|
|
|
2110 |
COVER (1)
|
4931508460 |
26.00
|
|
|
2111 |
NUT (6)
|
4931508461 |
2.50
|
|
|
2114 |
BODY (1)
|
4931508462 |
239.00
|
|
|
2116 |
HOUSING (1)
|
4931508463 |
47.00
|
|
|
2117 |
WASHER (4)
|
4931508464 |
2.50
|
|
|
2121 |
SCREW (2)
|
4931508465 |
2.50
|
|
|
2130 |
WASHER (4)
|
4931508466 |
2.50
|
|
|
2131 |
BUSHING (2)
|
4931508467 |
4.00
|
|
|
2132 |
WRENCH (1)
|
4931508468 |
12.00
|
|
|
2137 |
RATING PLATE (1)
|
4931510735 |
5.00
|
|
|
2152 |
PLATE (2)
|
4931508469 |
4.00
|
|
|
2153 |
BRACKET (1)
|
4931508470 |
22.00
|
|
|
2154 |
SCREW (2)
|
4931508471 |
2.50
|
|
|
2180 |
HOUSING (1)
|
4931508472 |
546.00
|
|
|
2181 |
PADDLE ASSEMBLY (1)
|
4931508473 |
196.00
|
|
|
2182 |
WHEEL (2)
|
4931508474 |
40.00
|
|
|
2183 |
TENSIONING DEVICE (1)
|
4931508475 |
21.00
|
|
|

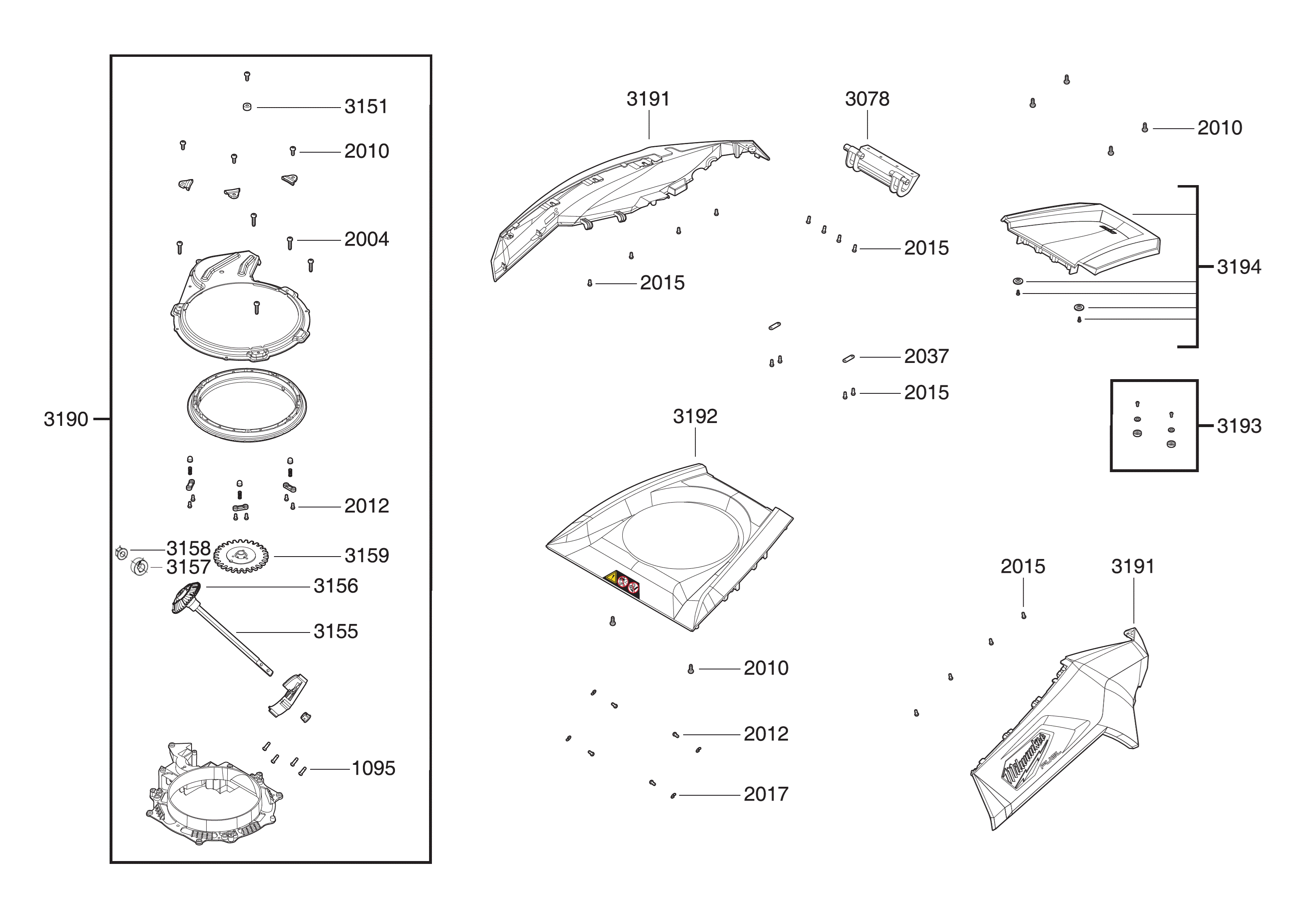

3078 |
HINGE PIECE (1)
|
4931508476 |
5.00
|
|
|
3151 |
BUSHING (1)
|
4931508477 |
3.00
|
|
|
3155 |
SHAFT (1)
|
4931508478 |
38.00
|
|
|
3156 |
PINION (1)
|
4931508479 |
28.00
|
|
|
3157 |
BUSHING (1)
|
4931508480 |
3.00
|
|
|
3158 |
FLANGE NUT (1)
|
4931508481 |
2.50
|
|
|
3159 |
BEVEL GEAR (1)
|
4931508482 |
16.00
|
|
|
3190 |
CONNECTION PLATE (1)
|
4931508483 |
120.00
|
|
|
3191 |
FRAME (1)
|
4931508484 |
82.00
|
|
|
3192 |
LABEL (1)
|
4931508485 |
37.00
|
|
|
3193 |
MAGNET (1)
|
4931508486 |
24.00
|
|
|
3194 |
COVER (1)
|
4931508487 |
34.00
|
|
|

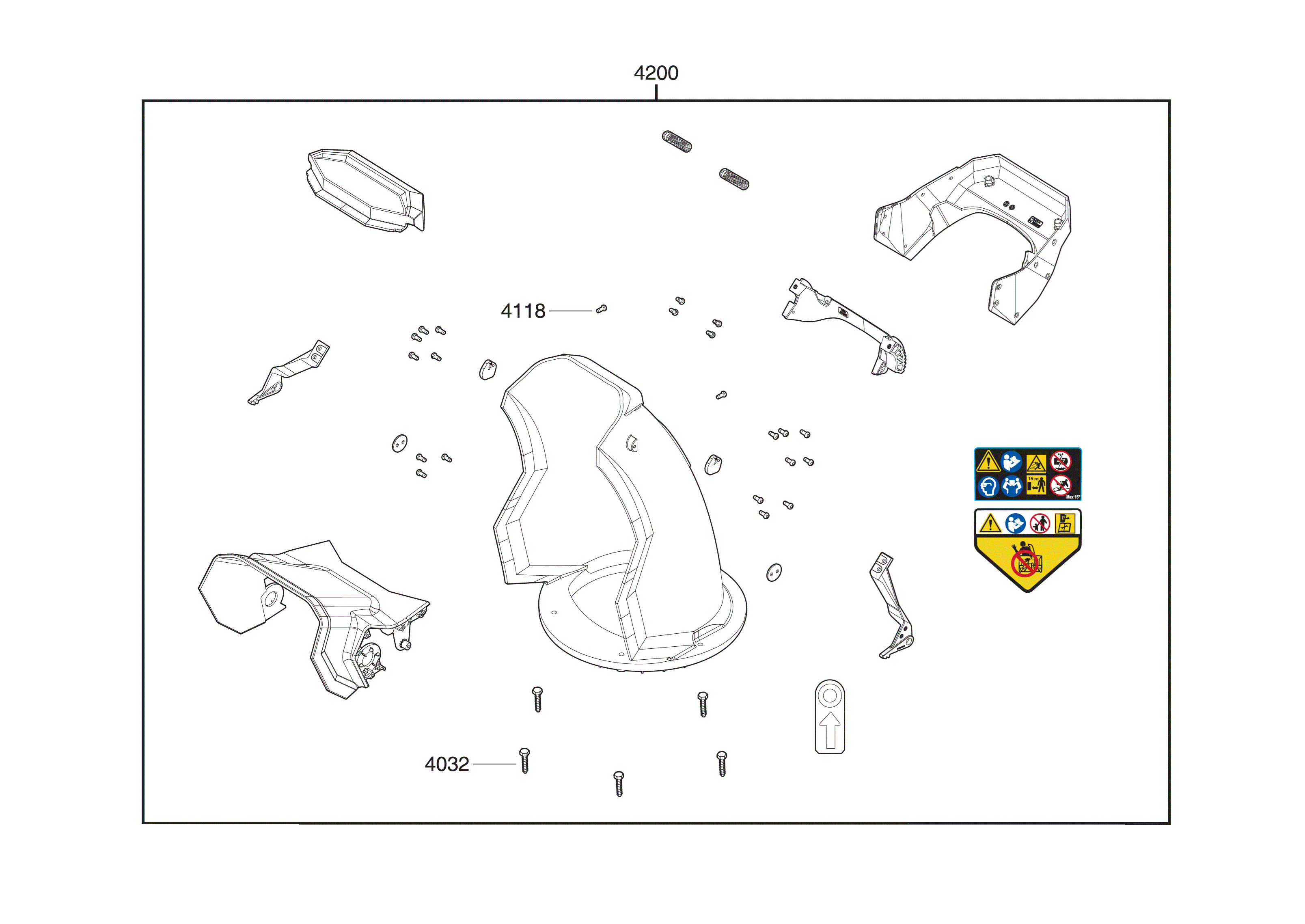

4032 |
SCREW (5)
|
4931508488 |
2.50
|
|
|
4118 |
SCREW (22)
|
4931508489 |
2.50
|
|
|
4200 |
SIDE DISCHARGE CHUTE (1)
|
4931508490 |
86.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
