Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

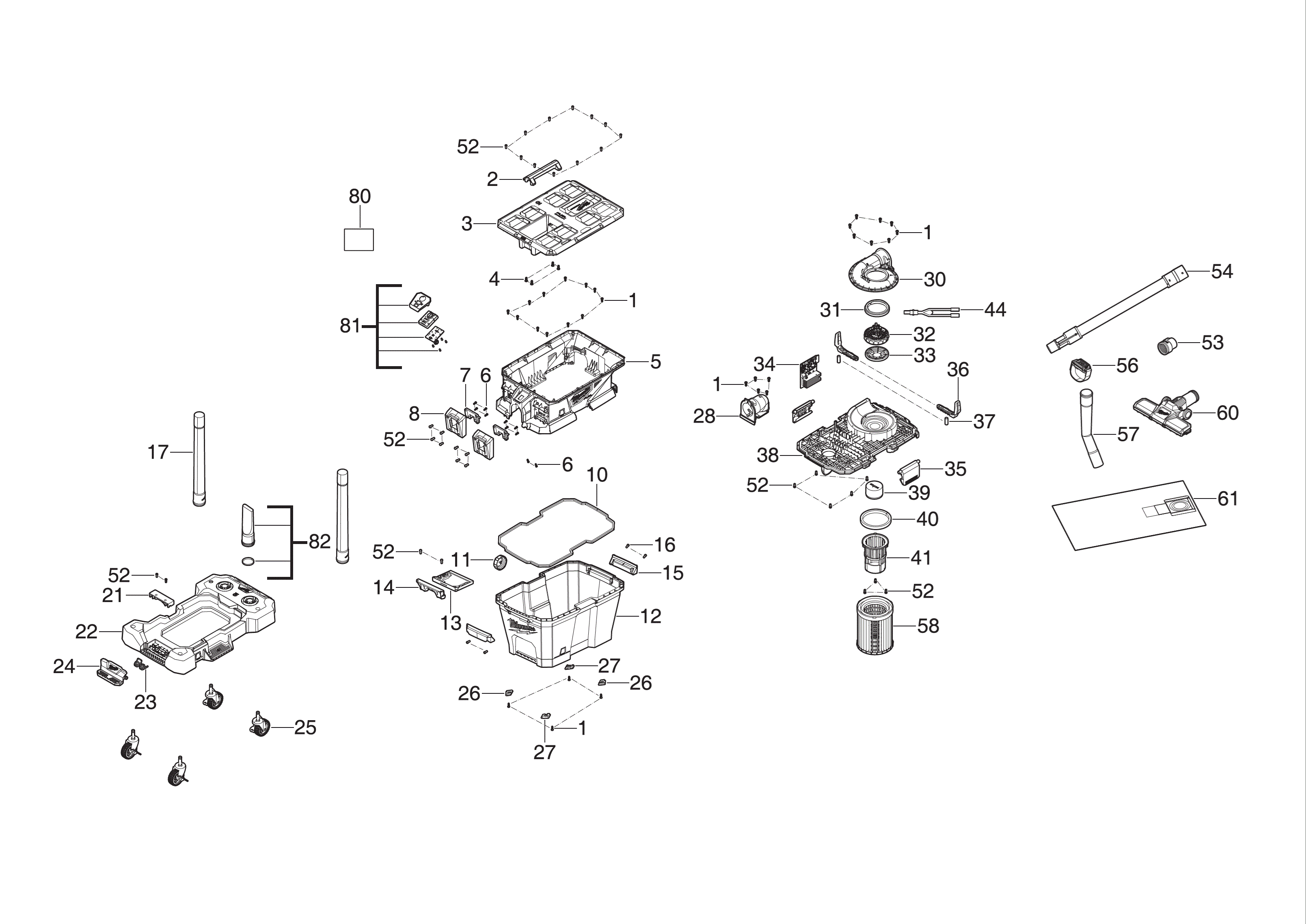

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (29)
|
4931494632 |
2.50
|
|
|
0002 |
HANDLE (1)
|
4931508544 |
5.00
|
|
|
0003 |
COVER (1)
|
4931508545 |
32.00
|
|
|
0004 |
SCREW (4)
|
4931508546 |
1.50
|
|
|
0005 |
BODY (1)
|
4931508547 |
43.00
|
|
|
0006 |
SCREW (10)
|
4931506826 |
1.50
|
|
|
0007 |
COVER (2)
|
4931508548 |
3.00
|
|
|
0008 |
GUIDE RAIL (2)
|
4931508549 |
5.00
|
|
|
0010 |
SEAL (1)
|
4931508550 |
13.00
|
|
|
0011 |
CAP (1)
|
4931508551 |
3.00
|
|
|
0012 |
TANK (1)
|
4931508552 |
63.00
|
|
|
0013 |
BRACKET (1)
|
4931508553 |
3.00
|
|
|
0014 |
HOLDER (1)
|
4931508554 |
3.00
|
|
|
0015 |
HANDLE (2)
|
4931508555 |
3.00
|
|
|
0016 |
SCREW (4)
|
4931508556 |
3.00
|
|
|
0017 |
ROD (2)
|
4931508557 |
10.00
|
|
|
0021 |
COVER (1)
|
4931508558 |
3.00
|
|
|
0022 |
BODY (1)
|
4931508559 |
60.00
|
|
|
0023 |
SPRING (1)
|
4931508560 |
3.00
|
|
|
0024 |
RELEASE LEVER (1)
|
4931508561 |
5.00
|
|
|
0025 |
WHEEL (4)
|
4931508562 |
10.00
|
|
|
0026 |
RUBBER BUFFER (2)
|
4931508563 |
3.00
|
|
|
0027 |
RUBBER BUFFER (2)
|
4931508564 |
3.00
|
|
|
0028 |
CONNECTOR (1)
|
4931508565 |
9.00
|
|
|
0030 |
HOUSING (1)
|
4931508566 |
13.00
|
|
|
0031 |
SEAL (1)
|
4931508567 |
6.00
|
|
|
0032 |
MOTOR (1)
|
4931508568 |
80.00
|
|
|
0033 |
SEAL (1)
|
4931508569 |
5.00
|
|
|
0034 |
ELECTRONIC (1)
|
4931508570 |
135.00
|
|
|
0035 |
LATCH (2)
|
4931508571 |
3.00
|
|
|
0036 |
BRACKET (2)
|
4931508572 |
4.00
|
|
|
0037 |
PIN (2)
|
4931508573 |
3.00
|
|
|
0038 |
FRAME (1)
|
4931508574 |
46.00
|
|
|
0039 |
FLOAT BALL (1)
|
4931508575 |
3.00
|
|
|
0040 |
SEAL (1)
|
4931508576 |
8.00
|
|
|
0041 |
INLET FILTER (1)
|
4931508577 |
5.00
|
|
|
0044 |
WIRE (1)
|
4931508578 |
4.00
|
|
|
0052 |
SCREW (32)
|
Item discontinued
(4931461455) |
|
|
|
0053 |
DUST EXTRACTION (1)
|
4931508283 |
13.00
|
|
|
0054 |
HOSE (1)
|
4931508579 |
79.00
|
|
|
0056 |
VACLINK FOB WITH ELASTIC BRAIDING TAPE (1)
|
4931510303 |
85.00
|
|
|
0057 |
HOSE (1)
|
4931508581 |
12.00
|
|
|
0058 |
Dry HEPA Filter replacement (1)
|
4932479805 |
29.00
|
|
|
0060 |
FLOOR TOOL (1)
|
4931508303 |
49.00
|
|
|
0061 |
Fleece Filter Bag - 5pcs (1)
|
4932479807 |
19.00
|
|
|
0080 |
RATING PLATE (1)
|
4931510739 |
3.00
|
|
|
0081 |
CONTROL PANEL KIT (1)
|
4931508582 |
34.00
|
|
|
0082 |
CREVICE TOOL (1)
|
4931508282 |
13.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
