Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|
Position |
Description (Qty) |
Part number |
Price (€) |
|
|

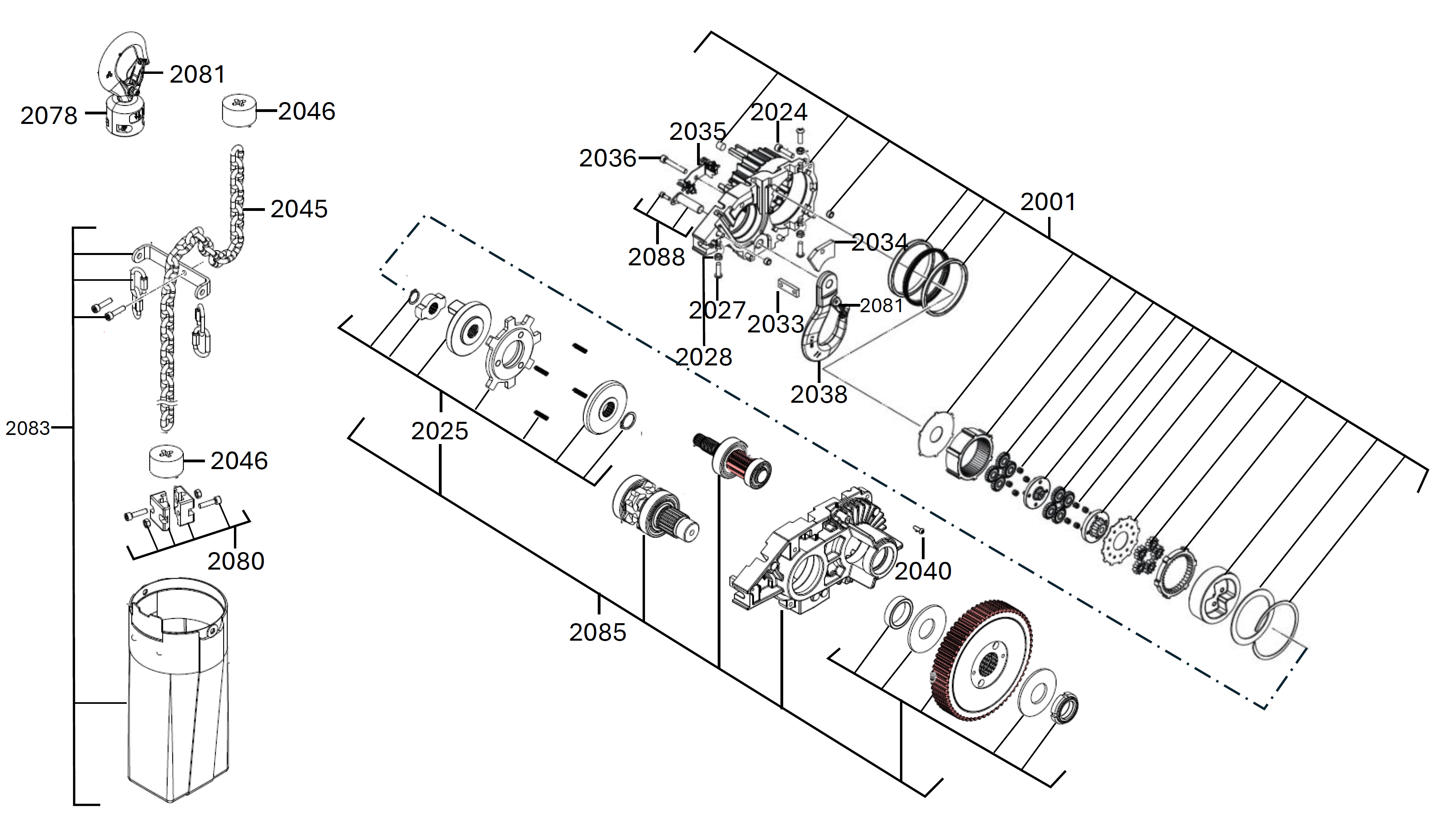

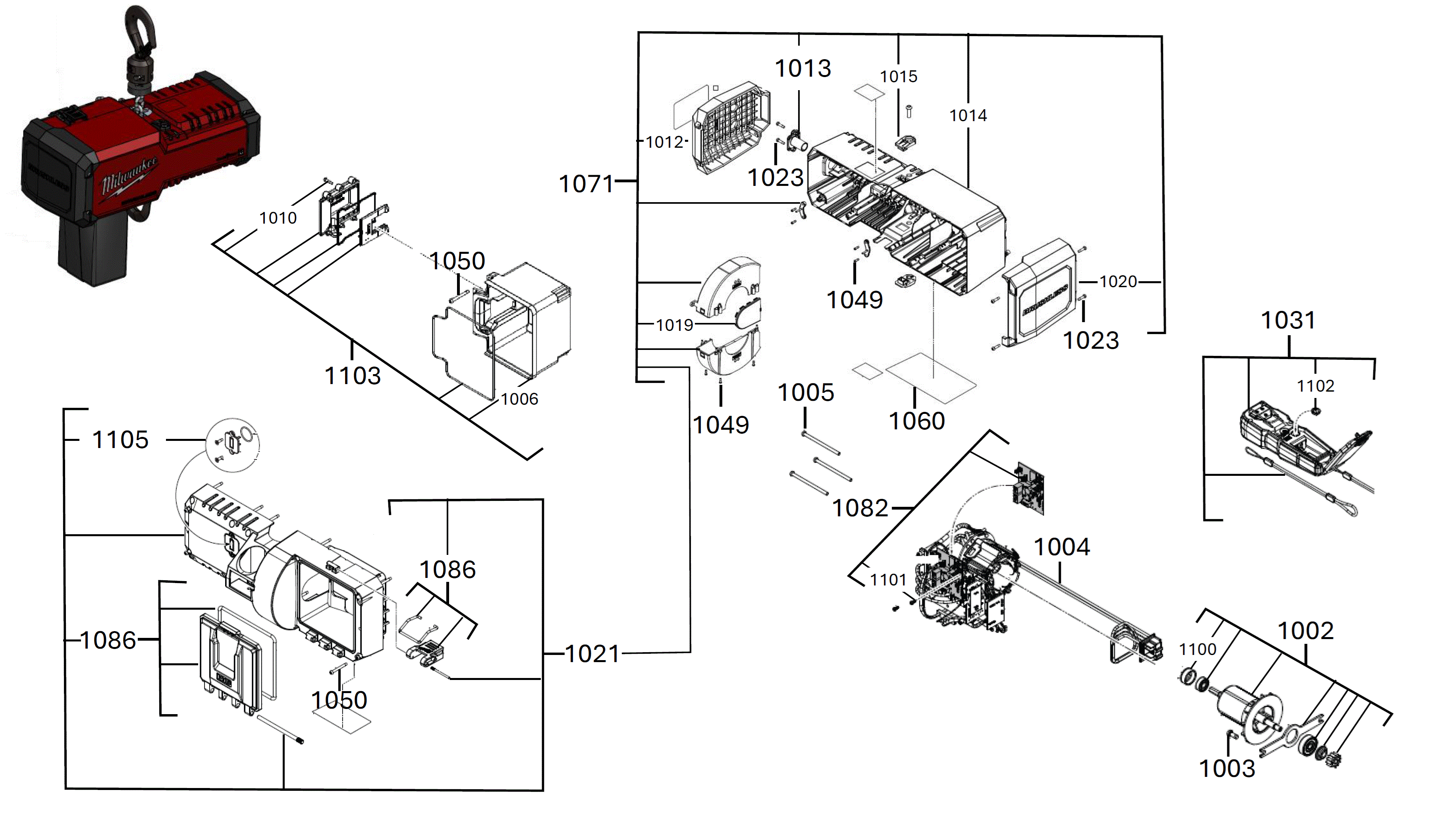

1002 |
ARMATURE (1)
|
4931508353 |
104.00
|
|
|
1003 |
SCREW (2)
|
4931508354 |
1.00
|
|
|
1004 |
ELECTRONIC (1)
|
4931508355 |
393.00
|
|
|
1005 |
SCREW (3)
|
4931508356 |
1.00
|
|
|
1006 |
HOUSING (1)
|
4931508357 |
48.00
|
|
|
1010 |
SCREW (6)
|
4931480615 |
3.00
|
|
|
1012 |
END COVER CAP (1)
|
4931508358 |
38.00
|
|
|
1013 |
COVER (1)
|
4931511284 |
104.00
|
|
|
1014 |
HOUSING (1)
|
4931508359 |
128.00
|
|
|
1015 |
PLUG (2)
|
4931508360 |
2.50
|
|
|
1019 |
DOOR (1)
|
4931508361 |
4.00
|
|
|
1020 |
END COVER CAP (1)
|
4931508362 |
47.00
|
|
|
1021 |
HOUSING (1)
|
4931508363 |
99.00
|
|
|
1023 |
SCREW (10)
|
4931508364 |
1.00
|
|
|
1031 |
REMOTE TSC CONTROL (1)
|
4931511285 |
1035.00
|
|
|
1049 |
SCREW (7)
|
4931508365 |
1.00
|
|
|
1050 |
SCREW (14)
|
4931508366 |
1.00
|
|
|
1060 |
RATING PLATE (1)
|
4931511286 |
12.00
|
|
|
1071 |
HOUSING (1)
|
4931508367 |
166.00
|
|
|
1082 |
ELECTRONIC (1)
|
4931508368 |
414.00
|
|
|
1086 |
DOOR (1)
|
4931508369 |
39.00
|
|
|
1100 |
END COVER CAP (1)
|
4931508370 |
1.00
|
|
|
1101 |
SCREW (2)
|
4931508371 |
1.00
|
|
|
1102 |
BUTTON (1)
|
4931508372 |
77.00
|
|
|
1103 |
HOUSING (1)
|
4931511287 |
249.00
|
|
|
1105 |
COVER (1)
|
4931511288 |
105.00
|
|
|
2001 |
GEAR CASE (1)
|
4931508373 |
279.00
|
|
|
2024 |
SCREW (12)
|
4931508374 |
14.00
|
|
|
2025 |
GEAR BOX KIT (1)
|
4931508375 |
815.00
|
|
|
2027 |
SCREW (3)
|
4931508802 |
5.00
|
|
|
2028 |
NUT (3)
|
4931480075 |
3.00
|
|
|
2033 |
NUT (1)
|
4931508376 |
34.00
|
|
|
2034 |
CROSS BRACKET (1)
|
4931508377 |
25.00
|
|
|
2035 |
ELECTRONIC (1)
|
4931508378 |
226.00
|
|
|
2036 |
SCREW (1)
|
4931508379 |
16.00
|
|
|
2038 |
HOOK (1)
|
4931508380 |
291.00
|
|
|
2040 |
SCREW (4)
|
4931508381 |
25.00
|
|
|
2045 |
CHAIN (1)
|
4931508382 |
873.00
|
|
|
2046 |
RUBBER BUMPER (2)
|
4931508383 |
58.00
|
|
|
2078 |
BLOCK (1)
|
4931508384 |
438.00
|
|
|
2080 |
BLOCK (1)
|
4931508385 |
128.00
|
|
|
2081 |
LATCH (2)
|
4931508386 |
47.00
|
|
|
2083 |
BAG (1)
|
4931508387 |
252.00
|
|
|
2085 |
GEAR CASE (1)
|
4931508388 |
140.00
|
|
|
2088 |
SCREW (1)
|
4931508389 |
123.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
