Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

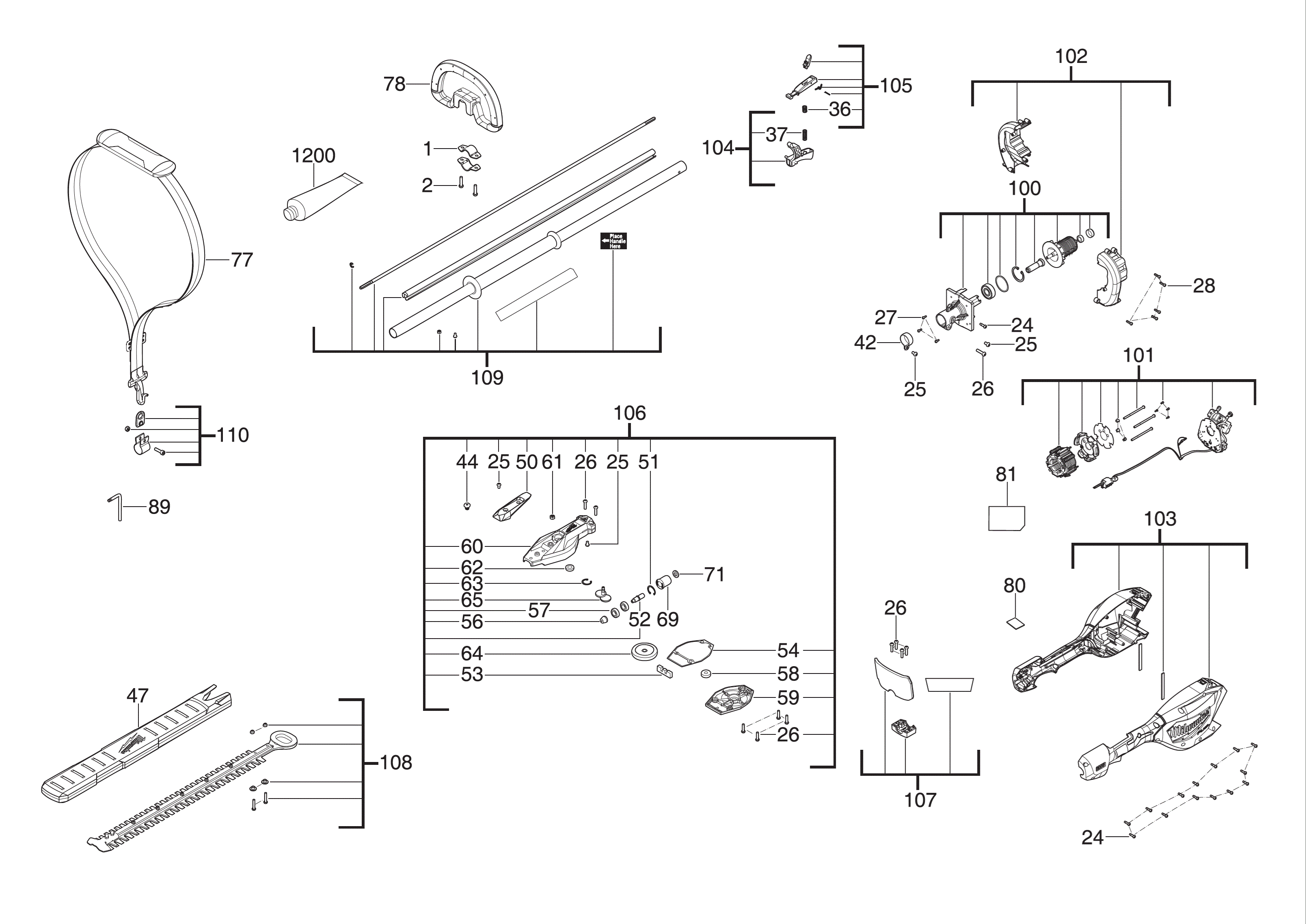

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
CLAMPING PLATE (2)
|
4931511088 |
4.00
|
|
|
0002 |
SCREW (2)
|
4931494116 |
2.50
|
|
|
0024 |
SCREW (15)
|
4931454800 |
3.00
|
|
|
0025 |
SCREW (4)
|
4931466677 |
1.50
|
|
|
0026 |
SCREW (11)
|
4931466683 |
1.50
|
|
|
0027 |
SCREW (3)
|
4931431788 |
2.50
|
|
|
0028 |
SCREW (5)
|
4931507637 |
1.00
|
|
|
0036 |
SPRING (1)
|
4931506465 |
1.00
|
|
|
0037 |
SPRING (1)
|
4931454808 |
2.50
|
|
|
0042 |
CLAMP (1)
|
4931494983 |
1.00
|
|
|
0044 |
SCREW (1)
|
4931494333 |
2.50
|
|
|
0047 |
SHAFT (1)
|
4931496128 |
15.00
|
|
|
0050 |
COVER (1)
|
4931496122 |
3.00
|
|
|
0051 |
COUPLING RING (1)
|
4931511089 |
1.00
|
|
|
0052 |
COUPLING (1)
|
4931511090 |
7.00
|
|
|
0053 |
SEAL (1)
|
4931496124 |
3.00
|
|
|
0054 |
SEAL (1)
|
4931496127 |
3.00
|
|
|
0056 |
PINION (1)
|
4931511091 |
10.00
|
|
|
0057 |
BALL BEARING (2)
|
4931511092 |
6.00
|
|
|
0058 |
BALL BEARING (1)
|
4931511093 |
4.00
|
|
|
0059 |
HOUSING (1)
|
4931511094 |
18.00
|
|
|
0060 |
HOUSING (1)
|
4931511095 |
35.00
|
|
|
0061 |
NUT (1)
|
4931506467 |
1.00
|
|
|
0062 |
BALL BEARING (1)
|
4931479454 |
3.00
|
|
|
0063 |
MOUNTING RING (1)
|
4931495412 |
1.50
|
|
|
0064 |
BEVEL GEAR (1)
|
4931496123 |
15.50
|
|
|
0065 |
CRANKSHAFT (1)
|
4931496125 |
20.50
|
|
|
0069 |
COUPLING SLEEVE (1)
|
4931511096 |
3.00
|
|
|
0071 |
WASHER (1)
|
4931511097 |
1.00
|
|
|
0077 |
STRAP (1)
|
4931496742 |
21.00
|
|
|
0078 |
HANDLE (1)
|
4931511098 |
22.00
|
|
|
0080 |
RUBBER BUFFER (1)
|
4931496743 |
1.00
|
|
|
0081 |
RATING PLATE (1)
|
4931510436 |
1.00
|
|
|
0089 |
KEY (1)
|
4931454817 |
3.00
|
|
|
0100 |
ROTOR (1)
|
4931511099 |
57.00
|
|
|
0101 |
ELECTRONIC (1)
|
4931511100 |
141.00
|
|
|
0102 |
MOTOR HOUSING (1)
|
4931511101 |
14.00
|
|
|
0103 |
HOUSING (1)
|
4931511102 |
27.00
|
|
|
0104 |
TRIGGER (1)
|
4931511103 |
11.00
|
|
|
0105 |
TRIGGER (1)
|
4931506475 |
14.00
|
|
|
0106 |
GEAR CASE (1)
|
4931511104 |
76.00
|
|
|
0107 |
GUARD (1)
|
4931511105 |
14.00
|
|
|
0108 |
BLADE (1)
|
4931511106 |
57.00
|
|
|
0109 |
DRIVING SHAFT (1)
|
4931511107 |
54.00
|
|
|
0110 |
STRAP (1)
|
4931511108 |
16.00
|
|
|
1200 |
GREASE (1)
|
49084220 |
75.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
