Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

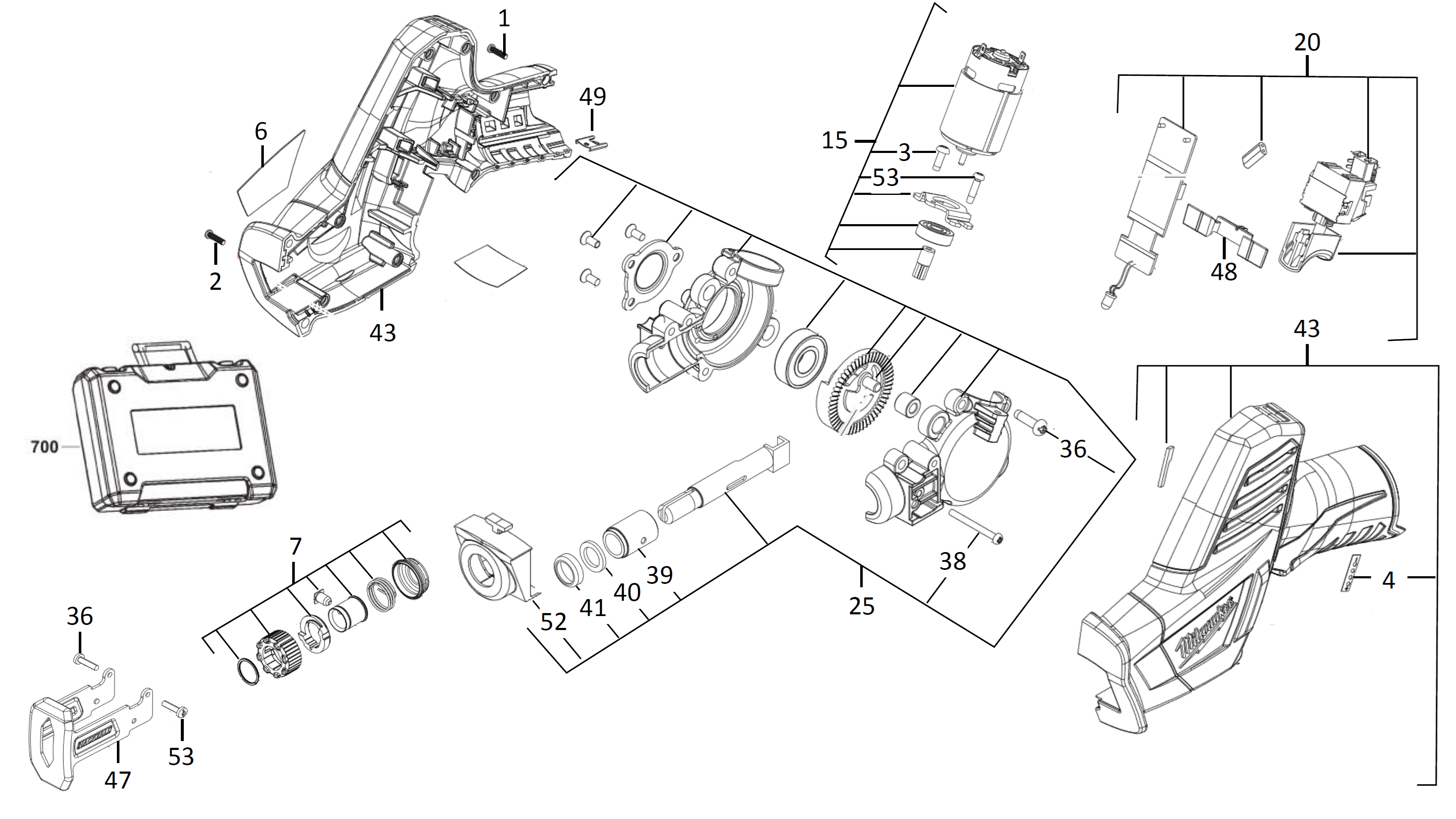

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
SCREW (3)
|
201046001 |
2.50
|
|
|
0002 |
SCREW (5)
|
201047001 |
4.00
|
|
|
0003 |
SCREW (1)
|
4931496932 |
1.50
|
|
|
0004 |
STICKER (1)
|
4931511321 |
1.00
|
|
|
0006 |
RATING PLATE (1)
|
4931511302 |
1.00
|
|
|
0007 |
NOSEPIECE (1)
|
200783002 |
11.50
|
|
|
0015 |
MOTOR (1)
|
4931466828 |
31.00
|
|
|
0020 |
SWITCH ASSEMBLY (1)
|
4931433296 |
38.50
|
|
|
0025 |
GEAR BOX ASSY (1)
|
4931466829 |
41.00
|
|
|
0036 |
SCREW (5)
|
661113008 |
3.00
|
|
|
0038 |
SCREW (1)
|
4931466830 |
1.00
|
|
|
0039 |
BUSH (1)
|
201053001 |
5.00
|
|
|
0040 |
FELT (1)
|
4931511322 |
2.00
|
|
|
0041 |
COVER (1)
|
201055001 |
4.50
|
|
|
0043 |
HANDLE COMPL. (1)
|
4931511303 |
21.00
|
|
|
0047 |
STOP (1)
|
4931511323 |
8.00
|
|
|
0048 |
GUIDE PIECE (1)
|
201057001 |
2.50
|
|
|
0049 |
CONNECTOR (1)
|
4931436292 |
3.00
|
|
|
0052 |
GUARD PLUG (1)
|
4931466831 |
1.00
|
|
|
0053 |
SCREW (2)
|
660024030 |
2.50
|
|
|
0700 |
CARRYING CASE (1)
|
4931511324 |
36.00
|
|
