Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

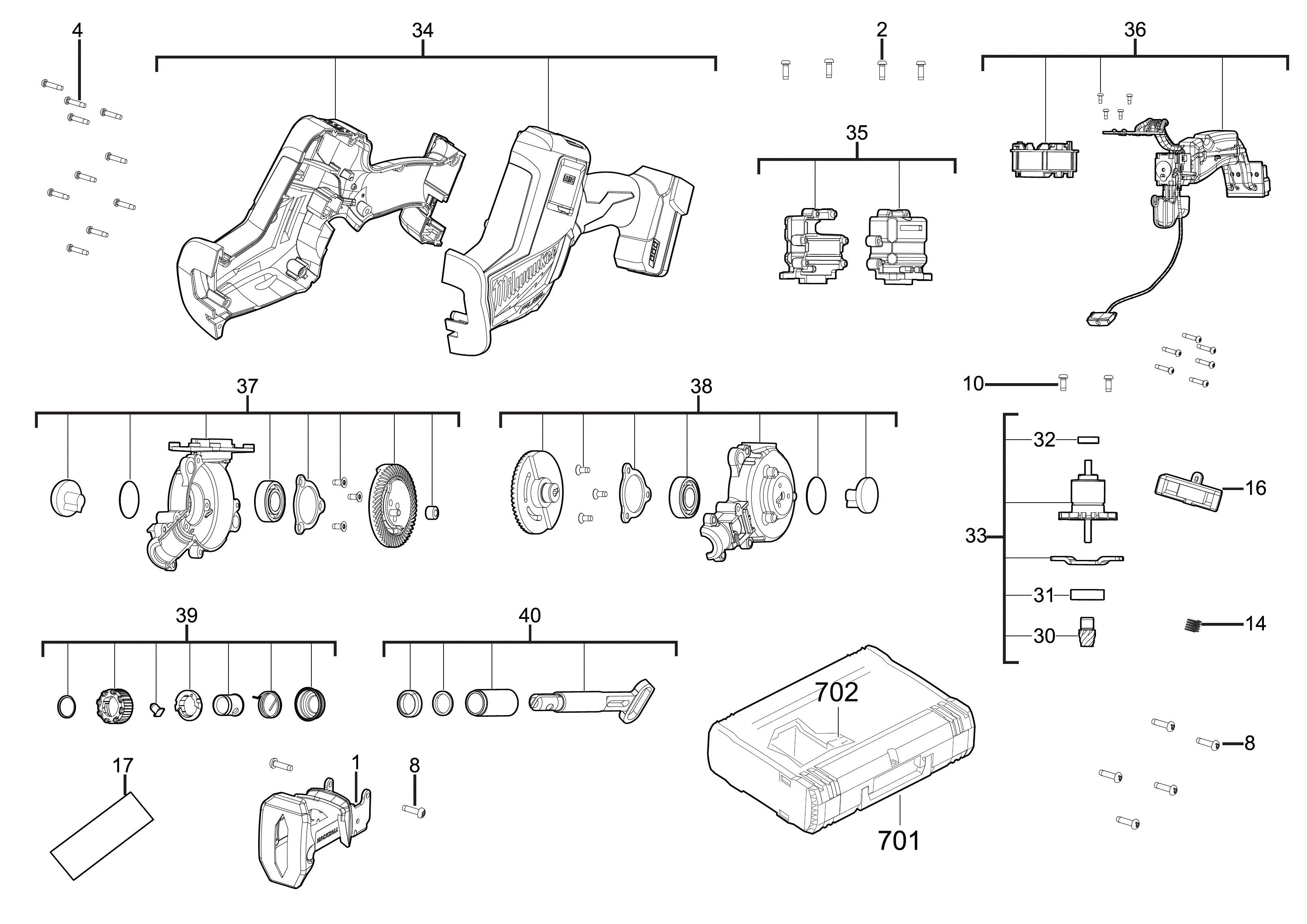

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
DISTANCE HOLDER (1)
|
4931465208 |
20.00
|
|
|
0002 |
SCREW (4)
|
660165011 |
2.50
|
|
|
0004 |
SCREW (10)
|
660031017 |
3.00
|
|
|
0008 |
SCREW (7)
|
661113008 |
3.00
|
|
|
0010 |
SCREW (2)
|
660165015 |
2.50
|
|
|
0014 |
PRESSURE SPRING (1)
|
4931408243 |
4.00
|
|
|
0016 |
SWITCH LEVER (1)
|
4931465209 |
3.00
|
|
|
0017 |
RATING PLATE (1)
|
4931511317 |
1.00
|
|
|
0030 |
BEVEL GEAR (1)
|
4931511318 |
11.00
|
|
|
0031 |
BALL BEARING (1)
|
4931465212 |
5.00
|
|
|
0032 |
BALL BEARING (1)
|
681286001 |
7.50
|
|
|
0033 |
MOTOR ASSEMBLY (1)
|
4931480414 |
41.00
|
|
|
0034 |
HOUSING (1)
|
4931511319 |
28.00
|
|
|
0035 |
HOUSING SET ASSY (1)
|
4931465215 |
9.00
|
|
|
0036 |
ELECTRONIC SWITCH (1)
|
4931465216 |
110.50
|
|
|
0037 |
GEAR BOX HOUSING (1)
|
4931480415 |
44.50
|
|
|
0038 |
GEAR BOX HOUSING (1)
|
4931480416 |
35.00
|
|
|
0039 |
FIXTEC-SET QUIK-LOK BLADE CLAMP KIT (1)
|
14461011 |
13.50
|
|
|
0040 |
RAM SET (1)
|
4931465220 |
33.00
|
|
|
0701 |
HD Box 1 - 1pc (1)
|
4932453385 |
47.30
|
|
|
0702 |
INSERT (1)
|
4931465221 |
10.00
|
|
To select the correct EU-Declaration of Conformity, please check the first 8 digits on your rating plate and match them with the corresponding EU-Declaration of Conformity document that has the same numbers in its title.
