Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

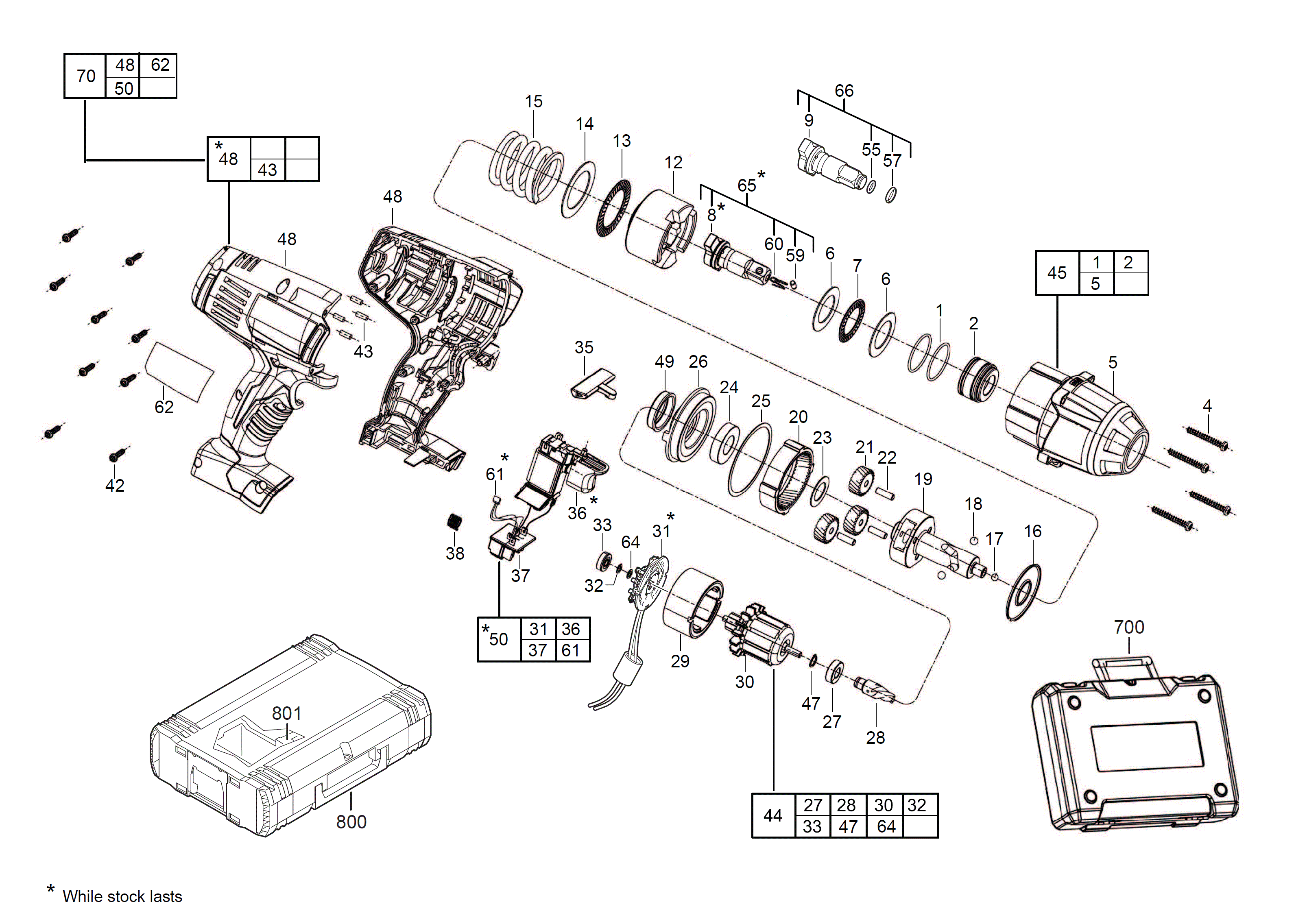

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0001 |
O-RING (2)
|
570690001 |
2.50
|
|
|
0002 |
BUSH (1)
|
680413031 |
9.00
|
|
|
0004 |
SCREW (4)
|
661046002 |
2.50
|
|
|
0005 |
HOUSING CAP (1)
|
641356001 |
14.01
|
|
|
0006 |
WASHER (2)
|
4931436152 |
2.50
|
|
|
0007 |
BALL BEARING (1)
|
680658012 |
8.00
|
|
|
0008 |
ANVIL (1)
|
Item discontinued
(671562023) |
|
|
|
0009 |
PUNCH (1)
|
Item discontinued
(4931416491) |
|
|
|
0012 |
RAM (1)
|
671486010 |
40.00
|
|
|
0013 |
BALL BEARING (1)
|
02800200 |
6.00
|
|
|
0014 |
WASHER (1)
|
680335060 |
2.50
|
|
|
0015 |
PRESSURE SPRING (1)
|
671588010 |
6.00
|
|
|
0016 |
WASHER (1)
|
680335059 |
2.50
|
|
|
0017 |
BALL (1)
|
680595003 |
2.50
|
|
|
0018 |
BALL (2)
|
680185001 |
2.50
|
|
|
0019 |
SPINDLE (1)
|
671488015 |
30.00
|
|
|
0020 |
PLANET WHEEL (1)
|
610449013 |
17.50
|
|
|
0021 |
PLANET WHEEL (3)
|
4931433835 |
4.00
|
|
|
0022 |
PIN (3)
|
671565004 |
3.50
|
|
|
0023 |
WASHER (1)
|
680335058 |
2.50
|
|
|
0024 |
BALL BEARING (1)
|
681340001 |
6.00
|
|
|
0025 |
GASKET (1)
|
560123001 |
4.00
|
|
|
0026 |
MOTOR HOUSING (1)
|
4931472254 |
6.00
|
|
|
0027 |
BALL BEARING (1)
|
4931441228 |
6.00
|
|
|
0028 |
PINION (1)
|
610447020 |
7.00
|
|
|
0029 |
ELECTRIC FIELD (1)
|
4931440971 |
43.99
|
|
|
0030 |
ARMATURE (1)
|
4931453442 |
28.50
|
|
|
0031 |
CARBON BRUSH SET (1)
|
Item discontinued
(4931433315) |
|
|
|
0032 |
WASHER (1)
|
902206001 |
2.50
|
|
|
0033 |
BALL BEARING (1)
|
681286001 |
7.00
|
|
|
0035 |
KNOB (1)
|
519198001 |
2.50
|
|
|
0036 |
SWITCH (1)
|
4931433316 |
59.97
|
|
|
0037 |
CONNECTOR (1)
|
4931441229 |
4.00
|
|
|
0038 |
SPRING (1)
|
4931408243 |
4.00
|
|
|
0042 |
SCREW (9)
|
660024018 |
2.50
|
|
|
0043 |
RUBBER BUFFER (4)
|
560085001 |
4.00
|
|
|
0044 |
ARMATURE (1)
|
201038002 |
36.00
|
|
|
0045 |
GEAR BOX HOUSING (1)
|
201040003 |
32.50
|
|
|
0047 |
RETAINING SPRING (1)
|
4931435569 |
4.00
|
|
|
0048 |
HANDLE SET (1)
|
Item discontinued
(201039002) |
|
|
|
0049 |
RUBBER CAP (1)
|
570692005 |
2.50
|
|
|
0050 |
SWITCH KIT (1)
|
Item discontinued
(4931433316) |
|
|
|
0055 |
O-RING (1)
|
4931416492 |
2.50
|
|
|
0057 |
CIRCLIP (1)
|
4931416493 |
4.00
|
|
|
0059 |
LOCKING PIN (1)
|
672448001 |
3.50
|
|
|
0060 |
SPRING ELEMENT (1)
|
691326001 |
3.50
|
|
|
0061 |
ADAPTER (1)
|
4931433316 |
59.97
|
|
|
0062 |
RATING PLATE (1)
|
940045406 |
2.50
|
|
|
0064 |
WASHER (1)
|
Item discontinued
(902207001) |
|
|
|
0065 |
INTERLOCK ELEMENT (1)
|
4931452474 |
43.99
|
|
|
0066 |
ANVIL (1)
|
4931416494 |
39.50
|
|
|
0070 |
HANDLE / SWITCH ASSY HD18HIW (1)
|
Item discontinued
(4931448388) |
|
|
|
0700 |
CARRYING CASE (1)
|
Item discontinued
(303187002) |
|
|
|
0801 |
INSERT (1)
|
4931440936 |
8.00
|
|
|
0800 |
CARRYING CASE WITH FOAM INSERT MET (1)
|
4932378986 |
113.63
|
|
